• 90° fold-down / fold-up design — pull down to use, push up and clip flush to ceiling when done
• Snap-back locking clip — holds the bar securely against the ceiling, no rattling on the road
• Thick-wall stainless steel bar — 15.4mm diameter, 0.8mm wall thickness, strong and rust-free
• 633mm wide — fits a full row of hangers or a large load of laundry
• Ceiling (top) mount — installs directly to the RV ceiling panel with included screws
• Lightweight at 286g — won't add meaningful weight to your build
• Clean white bracket finish — blends with standard RV interior ceilings

Product Components

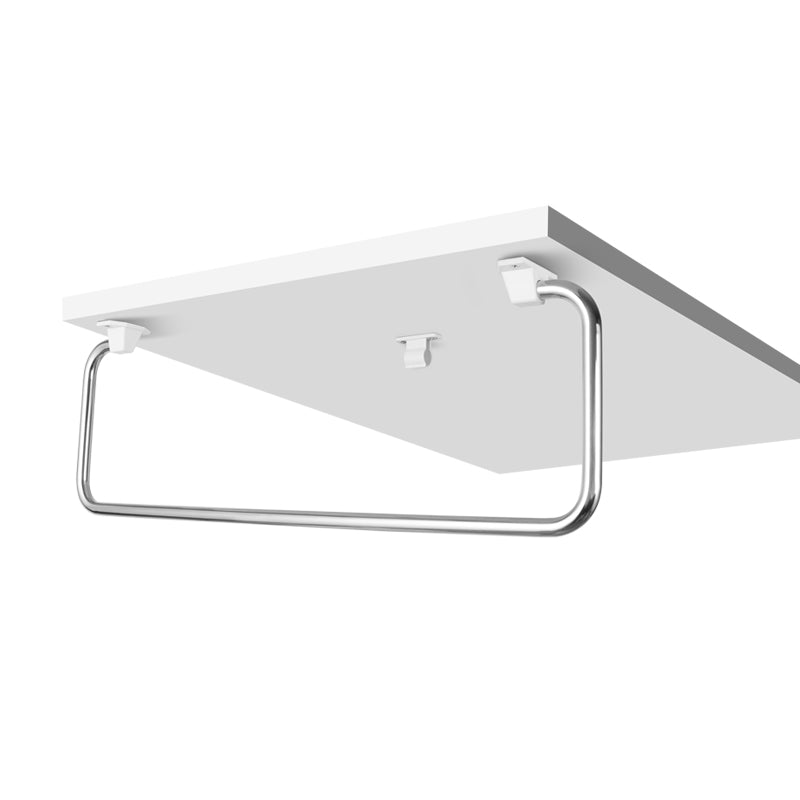

• Stainless steel clothes rail — 633mm wide, 203mm drop, 15.4mm diameter, 0.8mm wall thickness
• Fixed mounting brackets (x2) — white ABS, 30.6 × 60mm footprint, ceiling-mount
• Folding locking clip — white ABS, 53 × 35.5mm, snaps bar flush to ceiling when folded up
• Mounting screws (x6) — 13mm self-tapping screws, included

How to Use

• To use: gently pull the bar downward 90° until horizontal
• To store: lift the bar back up and press the locking clip to snap it flush against the ceiling

Technical Specifications

• Material: Stainless steel (bar) + ABS (brackets)
• Bar Width: 633mm
• Bar Drop (depth): 203mm
• Bar Diameter: 15.4mm
• Wall Thickness: 0.8mm
• Weight: 286g
• Mounting: Ceiling (top) mount, self-tapping screws
• Bracket Footprint: 30.6 × 60mm (fixed bracket), 53 × 35.5mm (locking clip)
• Screw Length: 13mm
• Finish: Polished stainless steel bar, white ABS brackets

Installation Notes

Mark two bracket positions on the ceiling 633mm apart. Pre-drill pilot holes if needed. Secure each fixed bracket with two 13mm self-tapping screws. Attach the stainless steel bar to the brackets. Mount the locking clip at the front-center position so the bar snaps into it when folded up. Suitable for RV ceiling panels, camper van roofs, and motorhome interiors.

Compatible Applications

RVs, motorhomes, camper vans, caravans, boat cabins, tiny homes, and any space-limited interior where a permanent clothes rail is impractical.
