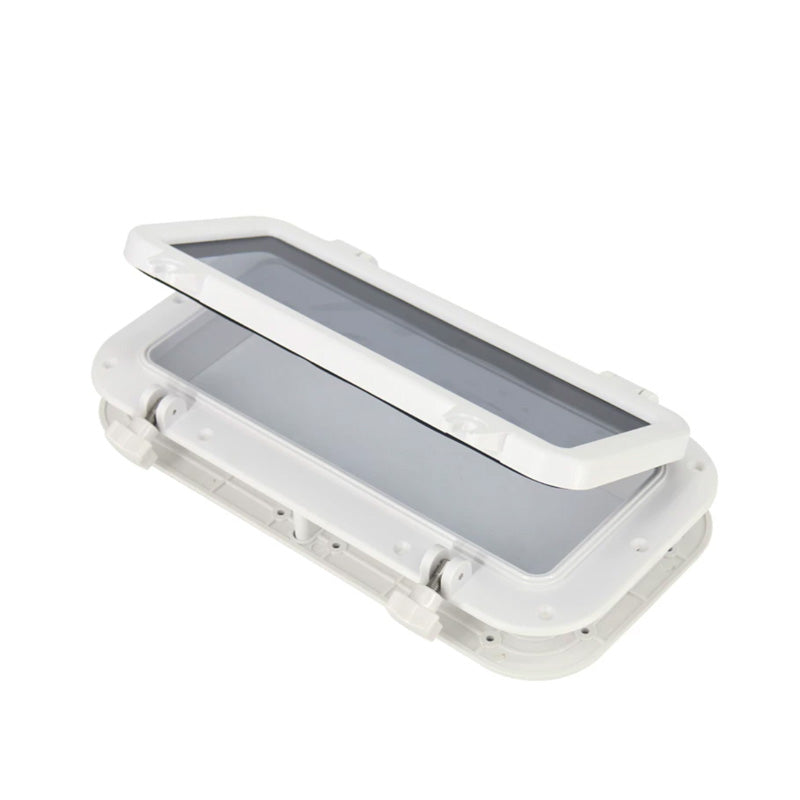

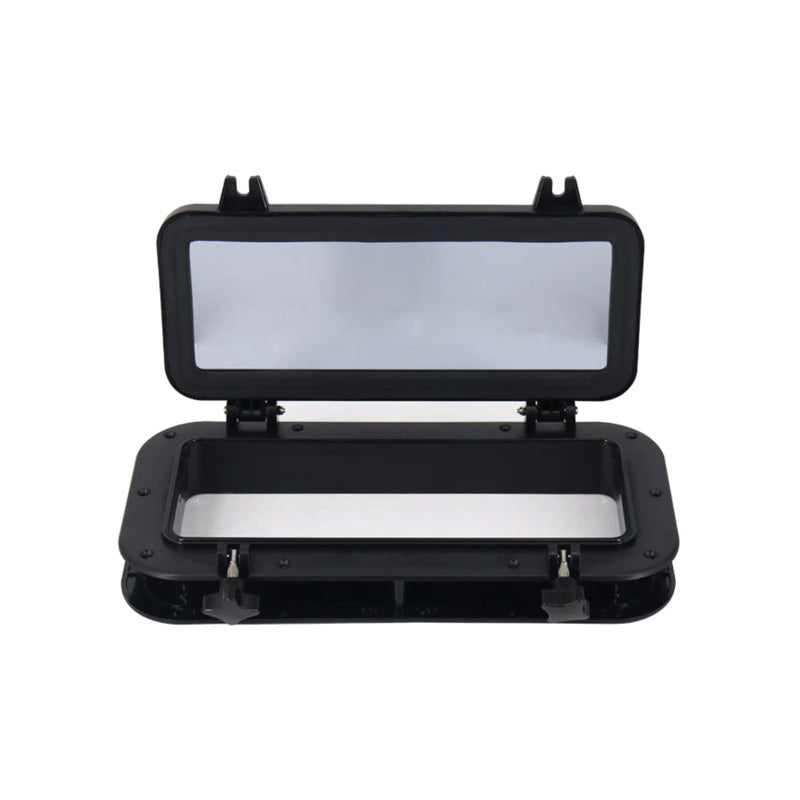

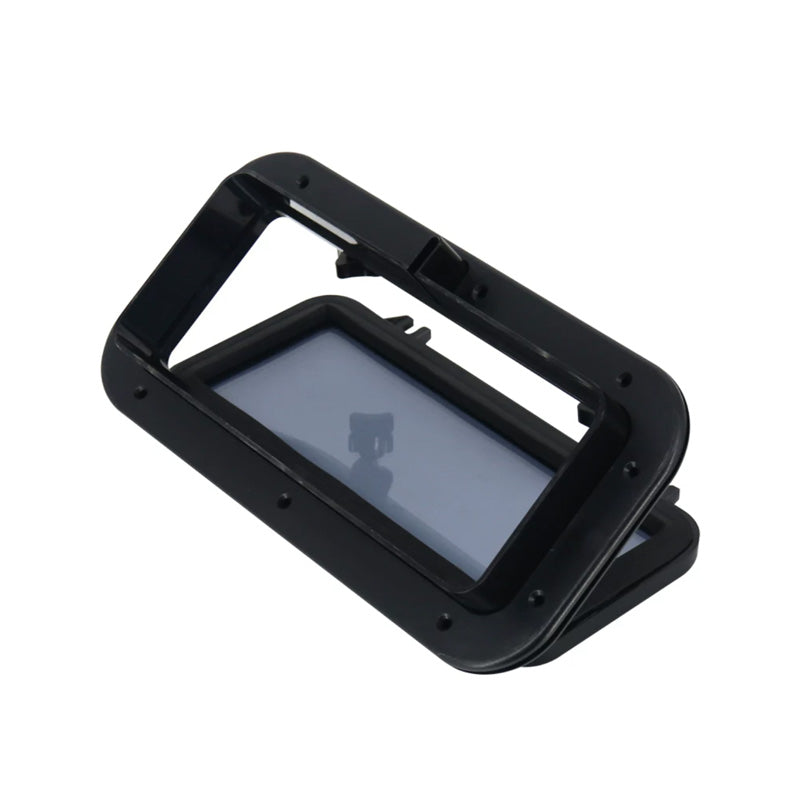

Rectangular opening portlight for boat cabins
This rectangular portlight combines an ABS frame, a hinged 4 mm tempered-glass window, two closing handles and a rubber seal. Choose white SFPP1-04 or black SFPP2-04; the two colour options share the illustrated dimensions.
Technical specifications
| Shape | Rectangular |
|---|---|
| White option | SFPP1-04 |
| Black option | SFPP2-04 |
| Overall frame size | 400 × 200 mm |
| Clear opening shown in drawing | 320 × 128 mm |
| Glazing | 4 mm tempered glass |
| Frame | ABS |
| Hardware | 316 stainless steel accessories; rubber seal |
Dimensions and fitment
Overall frame: 400 × 200 mm. Clear opening: 320 × 128 mm. The clear opening is the passage inside the frame. It is not a verified hull-cutting template.
Plan the installation
- Compare the existing portlight's external size, opening shape and fixing positions with the selected model.
- Check the available mounting thickness, surface curvature and clearance for the window to open.
- Confirm the cutout and corner profile against a verified fitting template or the physical frame. Have the sealing and fastening arrangement selected for the vessel installation.
This is a cabin portlight; an emergency escape-hatch function or pressure rating is not specified. Tempered glass is not unbreakable.
Contact ROQIFY with the existing opening dimensions and photographs if the replacement fit is uncertain.
Technical reference: manufacturer SFPP-04 product and dimension information.
