Round deck access for inspection and maintenance
A round twist-out inspection hatch with a textured lid, two recessed turning grips and a six-hole mounting flange. Choose the nominal 4, 6 or 8 inch size in white or black to suit your installation.
Choose your size
The inch labels identify the product options. They are not the measured outside diameter or a confirmed cutting template. The outside diameters below are taken from the original dimension photographs.
| Nominal option |
Outside diameter |
Colour choices |
| 4 inch |
141.5 mm |
White / Black |
| 6 inch |
196.5 mm |
White / Black |
| 8 inch |
248 mm |
White / Black |

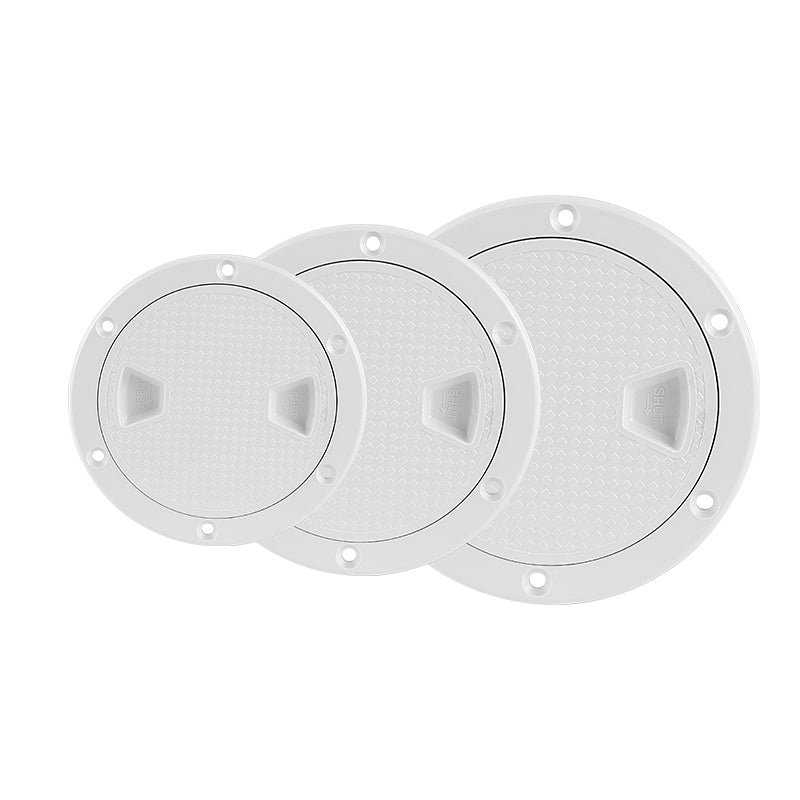

The photographs compare the available sizes and colours. Select the required size and colour with the product options above.

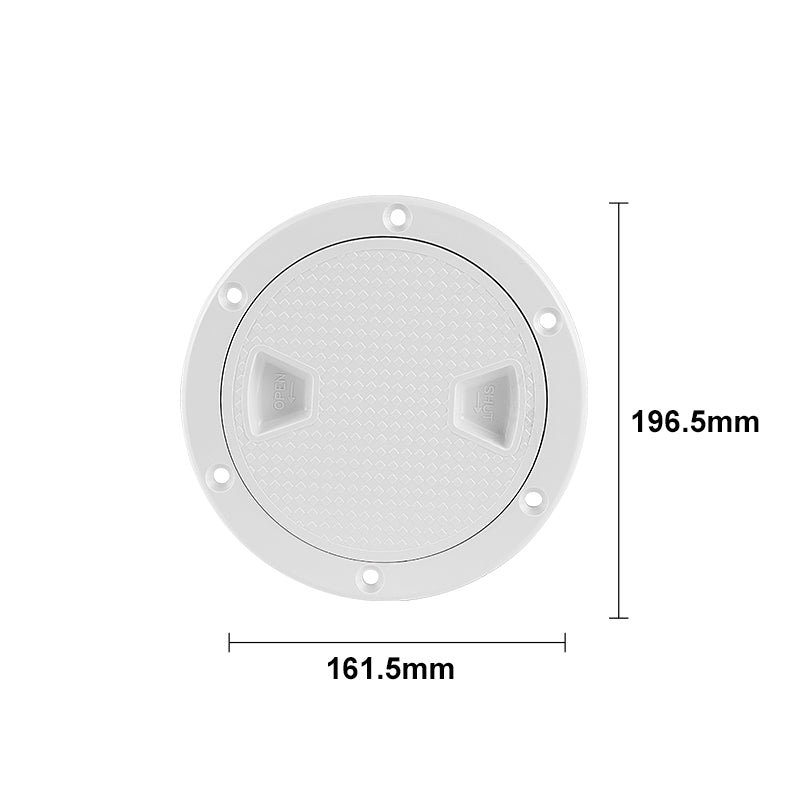

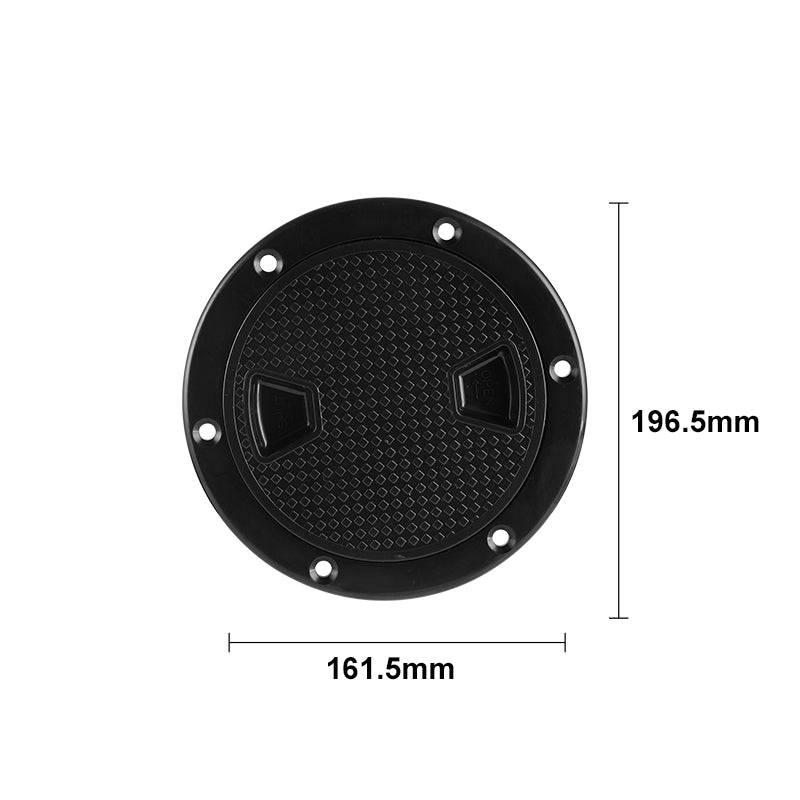

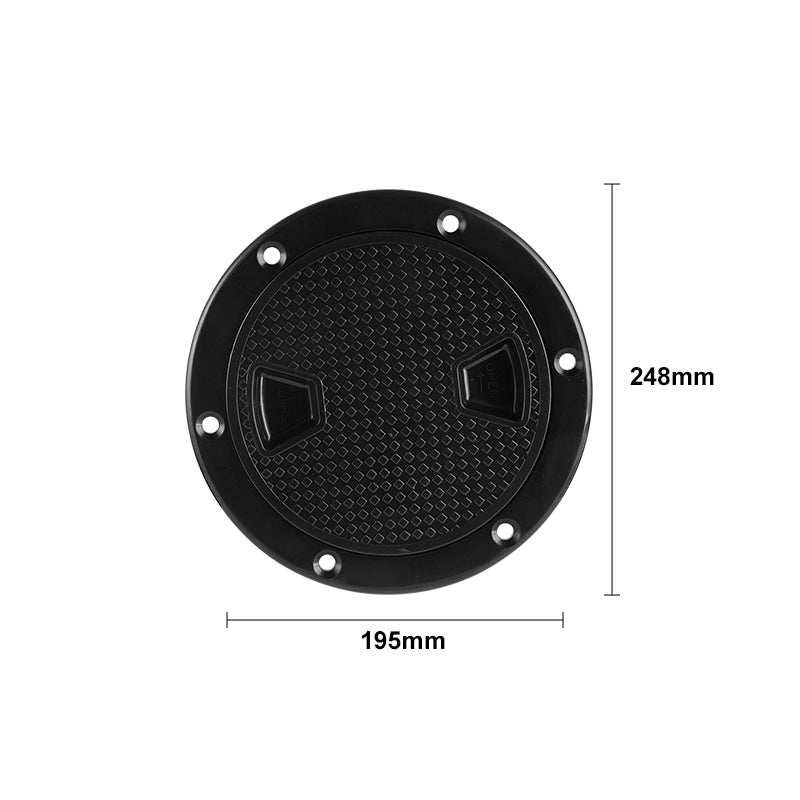

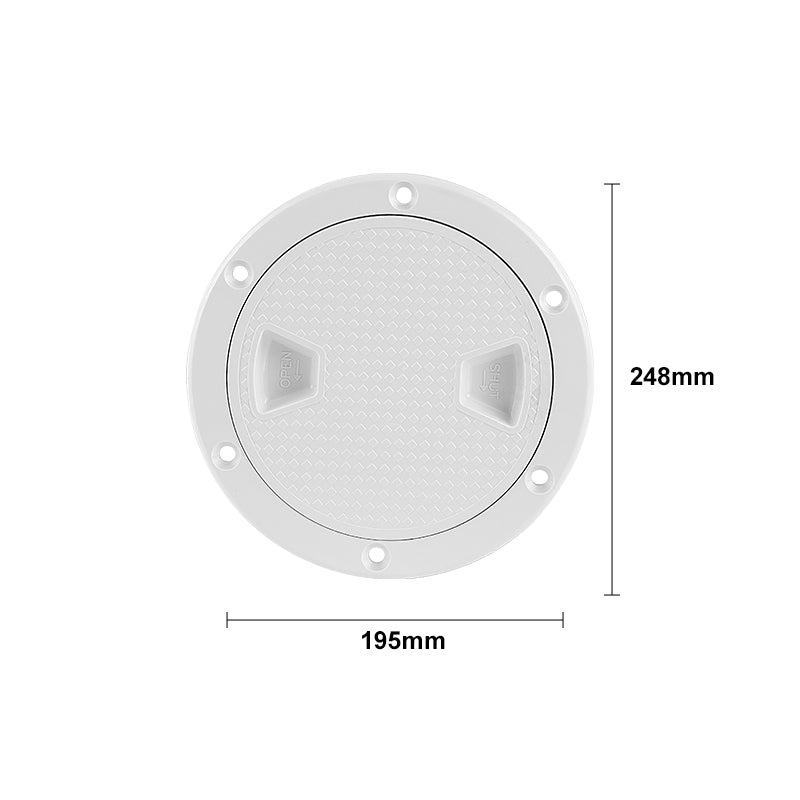

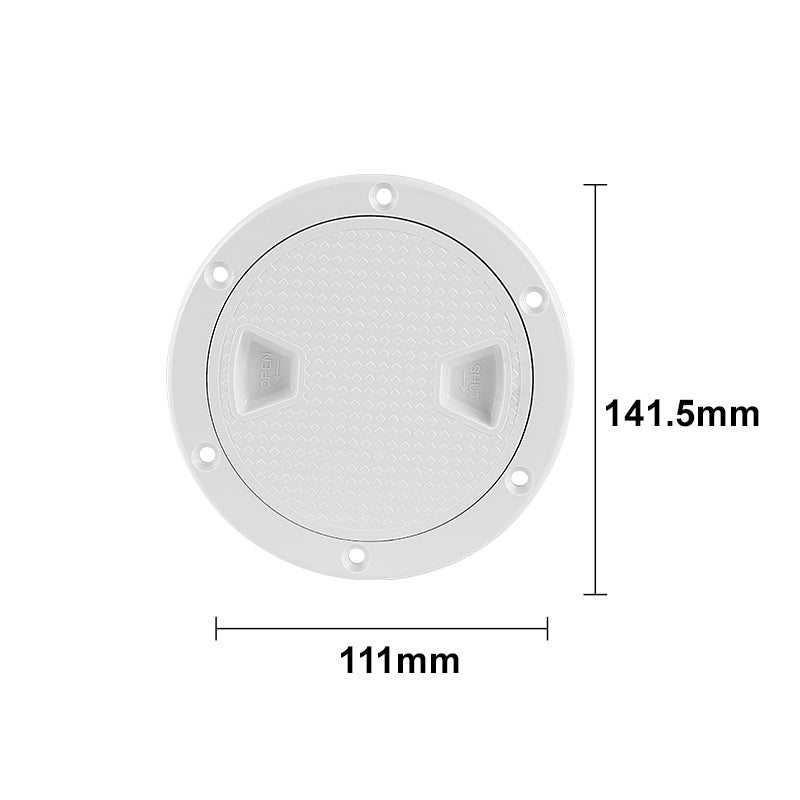

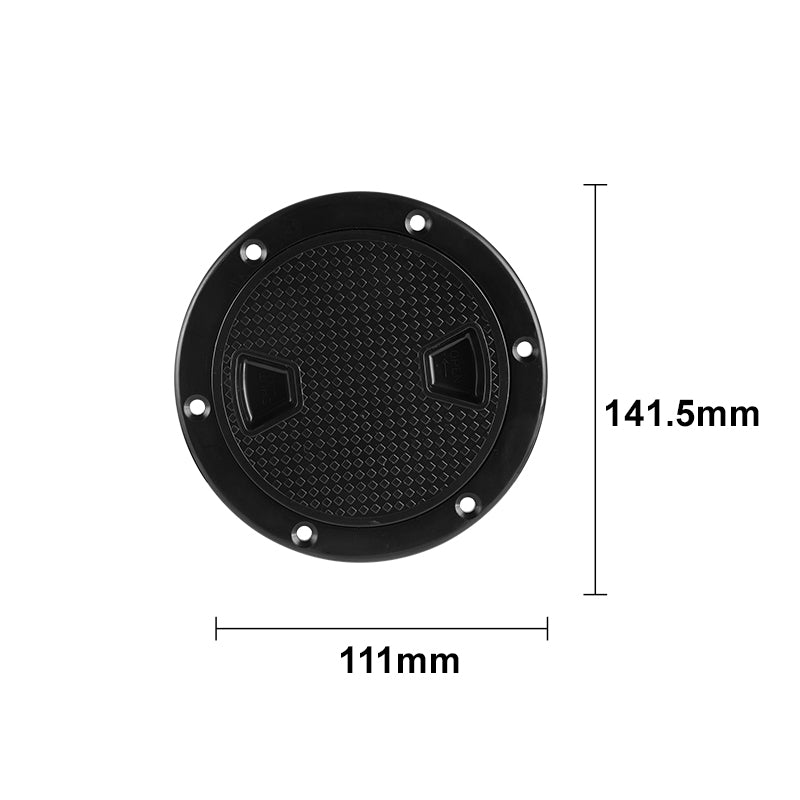

Dimension reference
Original dimension reference. The additional 111 / 161.5 / 195 mm labels are not identified as installation cutouts; confirm the required opening before cutting or drilling.
Installation planning
- Compare the selected hatch with the existing opening, surrounding mounting surface and six fixing positions.
- Allow room to turn and remove the lid and to reach the compartment below.
- Confirm the cutout, fixing pattern and suitable panel thickness before making a new opening. Contact ROQIFY with your measurements if replacing an existing hatch.
Supplier application illustration showing the hatch location. This image is a visual example, rather than a mounting template or load-rating demonstration.
A watertightness or load rating is not specified here. Choose the installation location and sealing method according to the vessel's requirements.
Ask ROQIFY about dimensions and fitment before ordering if your existing opening or mounting arrangement differs.
