45° Marine Fuel Fill Pocket – Undrilled ABS Retrofit Box for Boat, RV & Caravan (White / Light Gray, With or Without Cover)

Key Features

• Undrilled – Full DIY Flexibility: No pre-cut hole means you drill to your exact fitting diameter. Compatible with fuel filler ports, water ports, shower heads, battery disconnect switches, and terminal posts.
• Thickened ABS Construction: UV-stabilized, impact-resistant ABS with strong resilience — built for long-term marine and outdoor use without yellowing or cracking.
• Two Color Options: White or Light Gray — choose to match your hull or panel finish.
• With Cover or Without Cover:

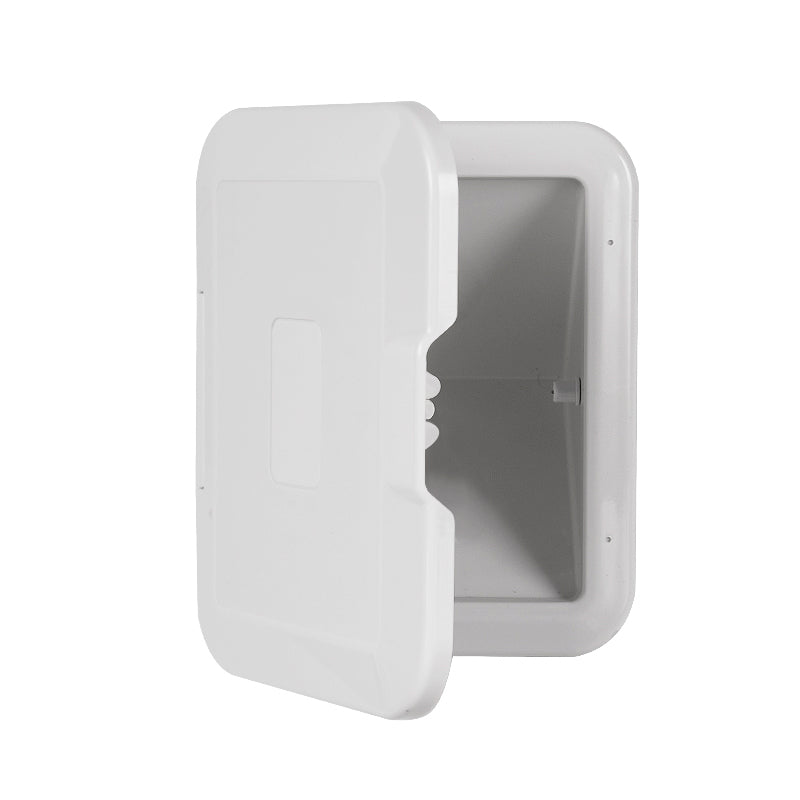

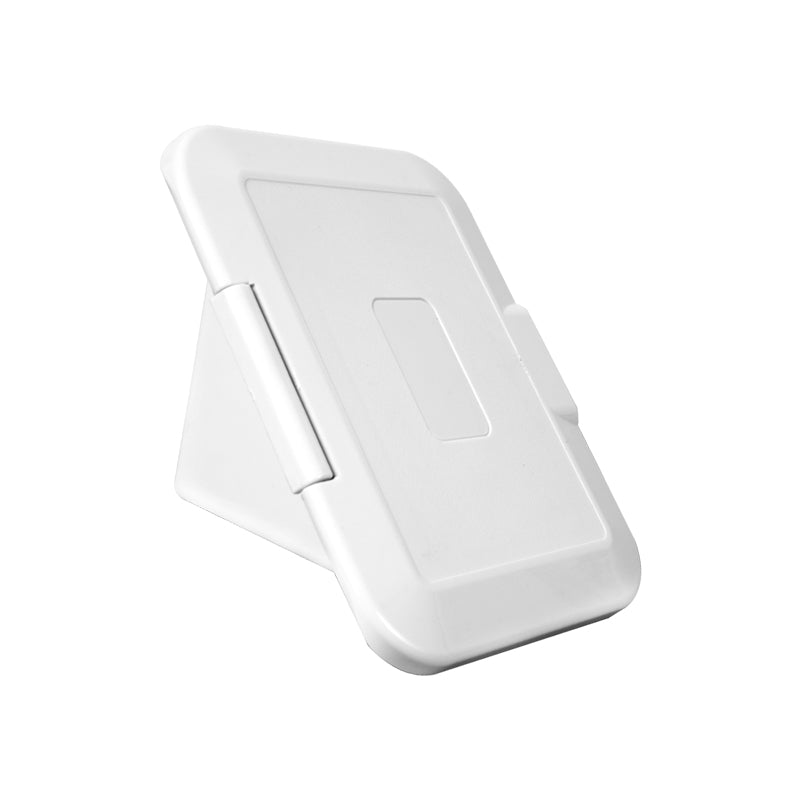

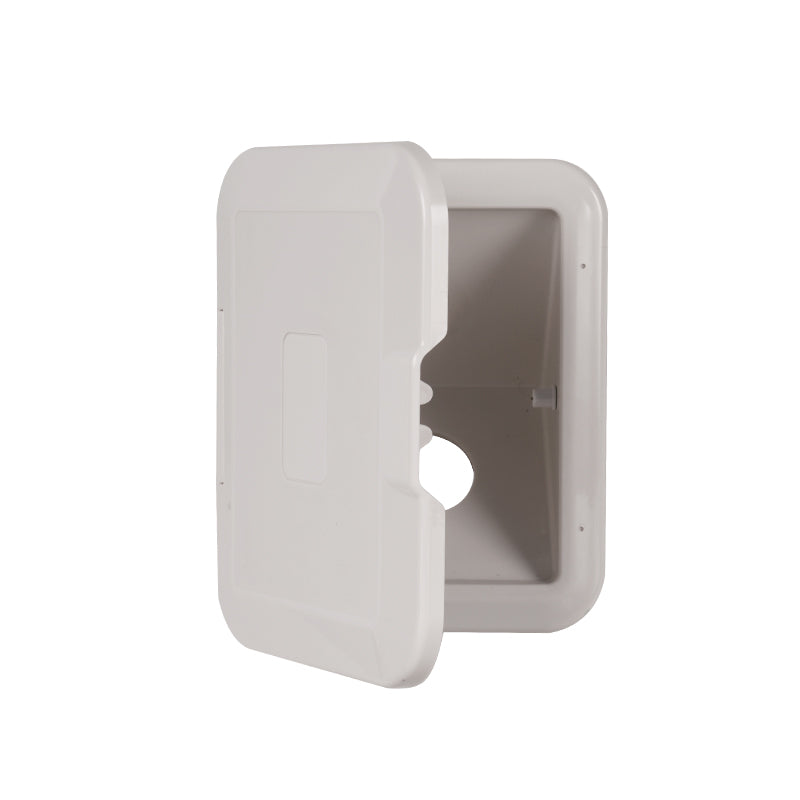

  With Cover: Hinged flip cover seals the pocket when not in use, keeping water, spray, and debris out.
  Without Cover (Open Pocket): For permanent-access fittings or custom installations where a cover is not needed.


• Flush Embedded Mount: Recesses into the deck surface for a snag-free, factory-clean appearance.

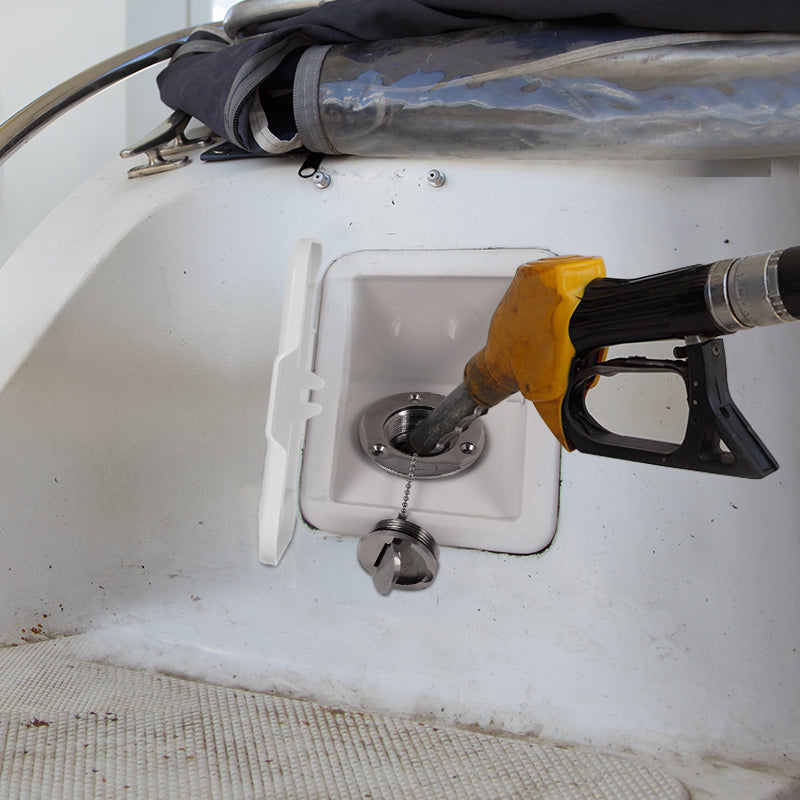

• 45° Angled Design: Ergonomic access angle directs water away from the opening and makes fueling or servicing easy.

Installation Notes

Cut a recess into your deck or panel to match the box dimensions (189 × 144 × 85 mm). Drop the box into the recess and secure using the corner mounting tabs. Drill your own hole in the base to match your specific fitting diameter. The hinged cover (With Cover variants) snaps open and closed for quick access and a weatherproof seal when closed.

• Material: Thickened ABS Plastic (UV-stabilized)
• Colors: White / Light Gray

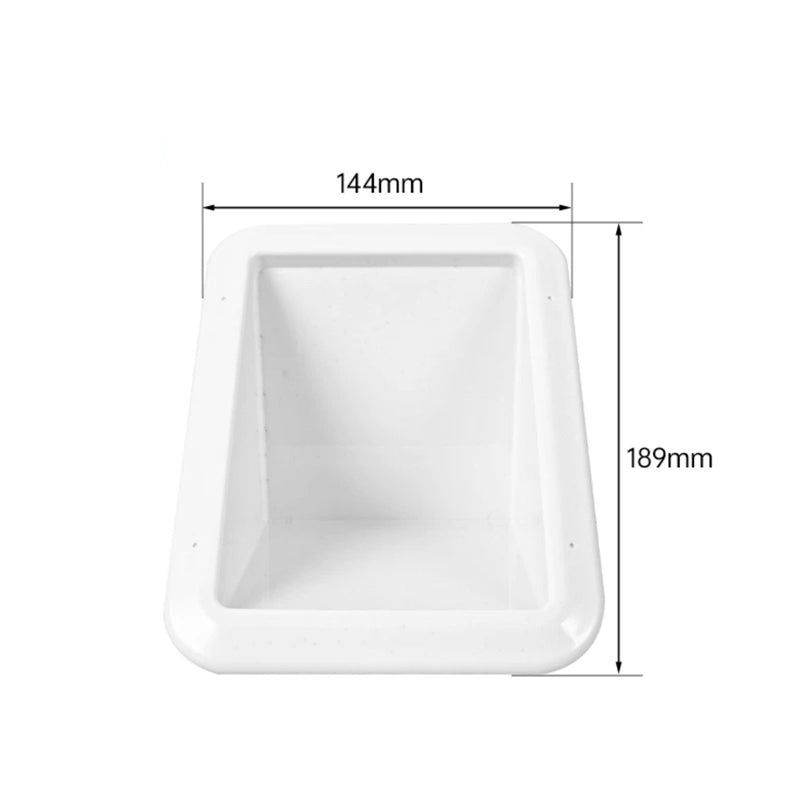

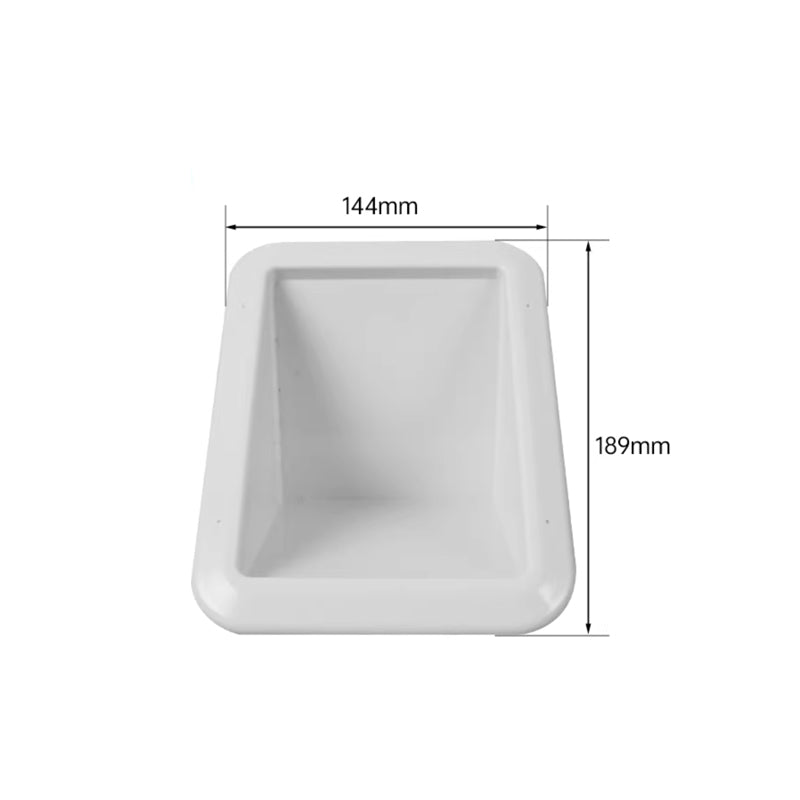

• Box Dimensions: 189 mm (7.4") × 144 mm (5.67") × 85 mm (3.35")

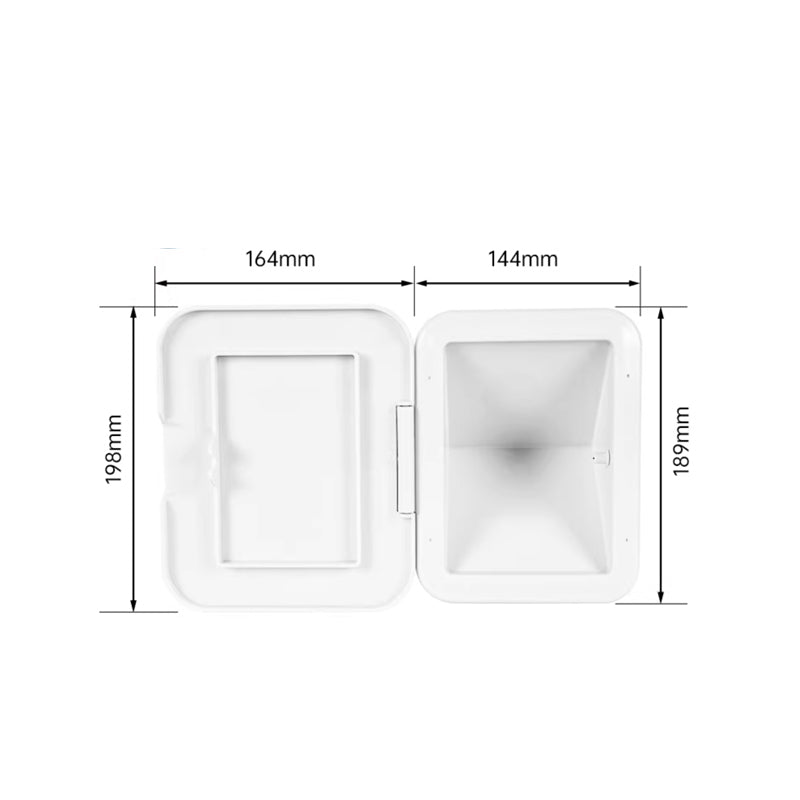

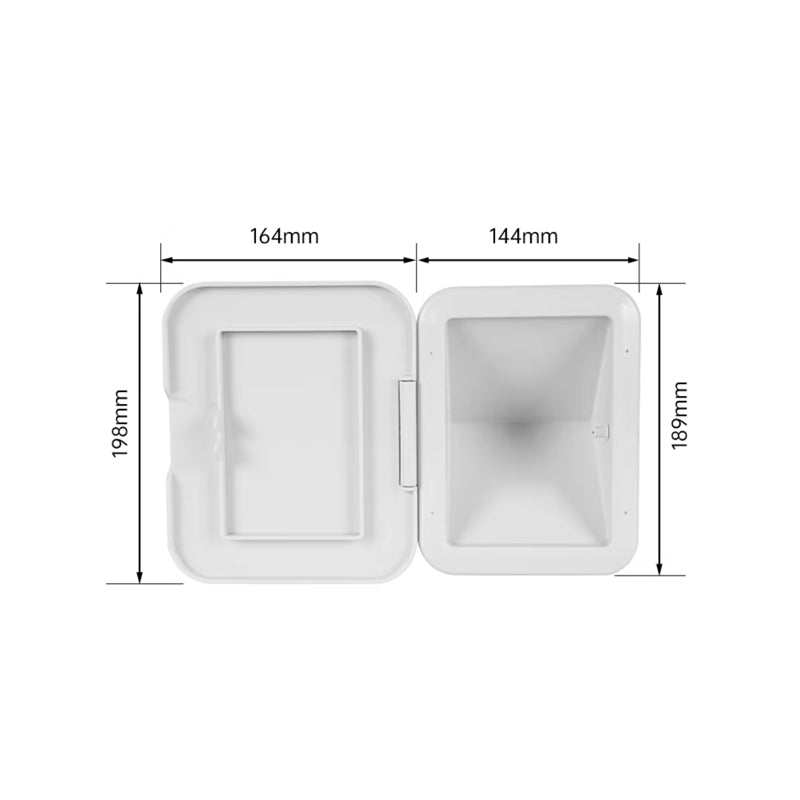

• Cover Surface Size (With Cover variants): 198 mm (7.8") × 164 mm (6.46") × 12.5 mm (0.492")
• Weight – With Cover: 253 g
• Weight – Without Cover: 144 g
• Drill Option: Undrilled (DIY)
• Compatible Vessels: Motorboats, speedboats, sailboats, RVs, caravans, trailers
• Country of Origin: China
