ABS Y-Type Drain Hose Connector with Check Valve - 19 / 29 mm

$8.90 - $10.90

$8.90

$8.90 - $10.90

$8.90

Disponibilidad:

100 en stock, listo para ser enviado

Disponibilidad:

100 en stock, listo para ser enviado

Cantidad

Shipping to Emiratos Árabes Unidos · USD

Shipping options and final rates are shown at checkout.

See shipping information

Política de devolución de 14 días

Tiene 14 días después de recibir su artículo para solicitar una devolución. Los gastos de envío de la devolución son responsabilidad del cliente, a menos que el artículo esté dañado, defectuoso o sea incorrecto.

Match the Y-connector to your drainage hose

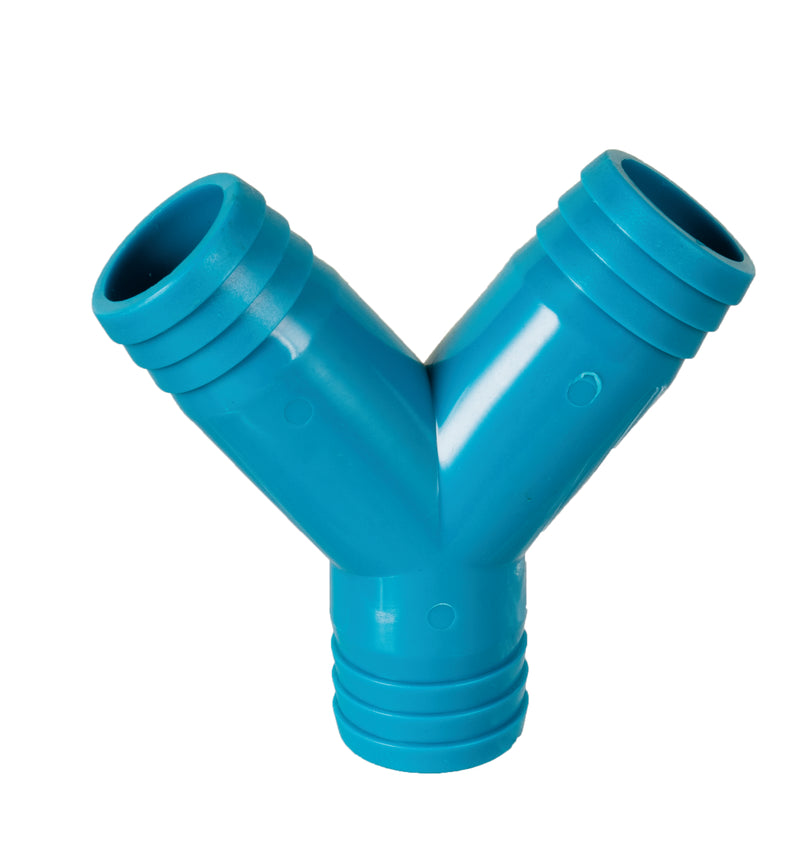

A turquoise ABS Y-type hose connector with three ribbed hose connection ends. Choose the 19-19-Y or 29-29-Y size required by the actual hose. The company specification identifies both as check-valve versions; confirm the valve direction and installation arrangement for the supplied fitting.

Specifications and options

19 mm selection	19-19-Y; nominal 19 mm hose connection references
19 mm overall references	79 mm width × 81 mm height, as annotated
29 mm selection	29-29-Y; nominal 29 mm hose connection references
29 mm overall references	90 mm width × 88 mm height, as annotated
Material / appearance	ABS; turquoise
Valve version	Check-valve model according to the matching company specification
Supply scope	One fitting in the selected size; hoses, clamps and pumps sold separately

Dimension reference by option

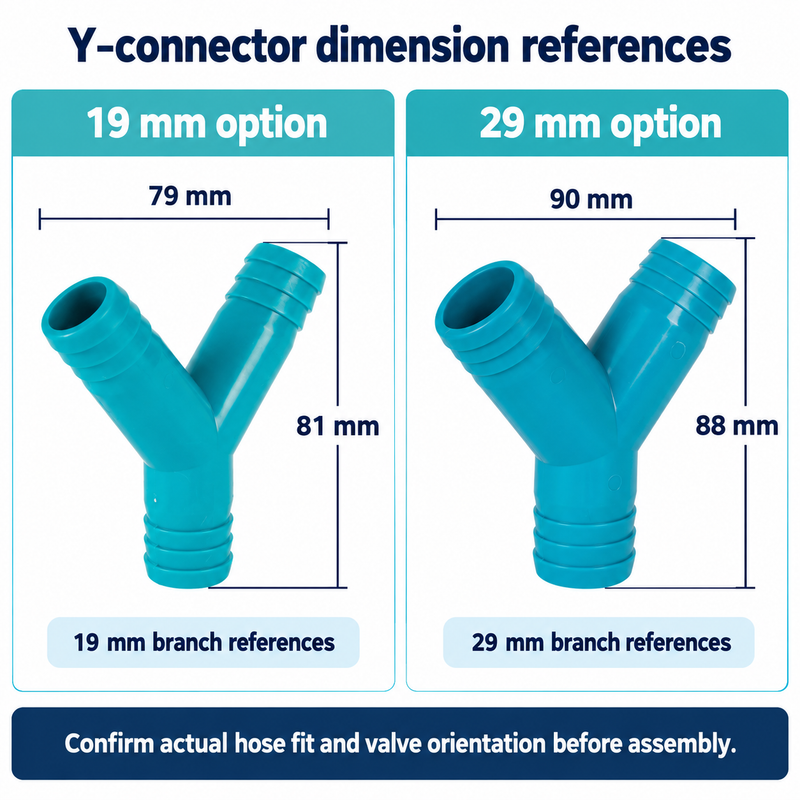

Y-connector parameter card prepared from original photographs: 19 mm option 79 × 81 mm; 29 mm option 90 × 88 mm. — Edited original supplier photographs. Match the actual hose fit and current connector before assembly.

Connection-planning illustration

Illustrative setting with a turquoise Y-connector beside unconnected hoses and clamps; accessories are not included. — Illustrative setting for planning connections. The hoses are not attached and this is not a verified installed drainage system.

Fit and installation

Measure the actual hose inside diameter and compare the connector ends and available routing space.
Confirm the intended flow path and check-valve orientation using the supplied fitting instructions. The Y shape alone does not specify flow direction.
Use suitable hoses and securing hardware; support the connections without twisting or loading the fitting.
Test drainage, joints and valve function after assembly, and retain access for inspection.

Contact ROQIFY for current valve orientation, operating limits and fitting dimensions before planning a shared discharge route.

🔺 Detalles del producto

Match the Y-connector to your drainage hose

The original fitting diagrams show 79 mm width × 81 mm height for the 19 mm option and 90 mm width × 88 mm height for the 29 mm option. Nominal hose size and overall dimensions describe different fit checks. Hoses, clamps and pumps are not included in this separate fitting selection.

🔺 Especificaciones e instalación

Specifications and installation

19 mm selection: 19-19-Y; nominal 19 mm hose connection references; 19 mm overall references: 79 mm width × 81 mm height, as annotated; 29 mm selection: 29-29-Y; nominal 29 mm hose connection references; 29 mm overall references: 90 mm width × 88 mm height, as annotated; Material / appearance: ABS; turquoise; Valve version: Check-valve model according to the matching company specification; Supply scope: One fitting in the selected size; hoses, clamps and pumps sold separately

See the product description for the dimension reference, application image and fit checks.
