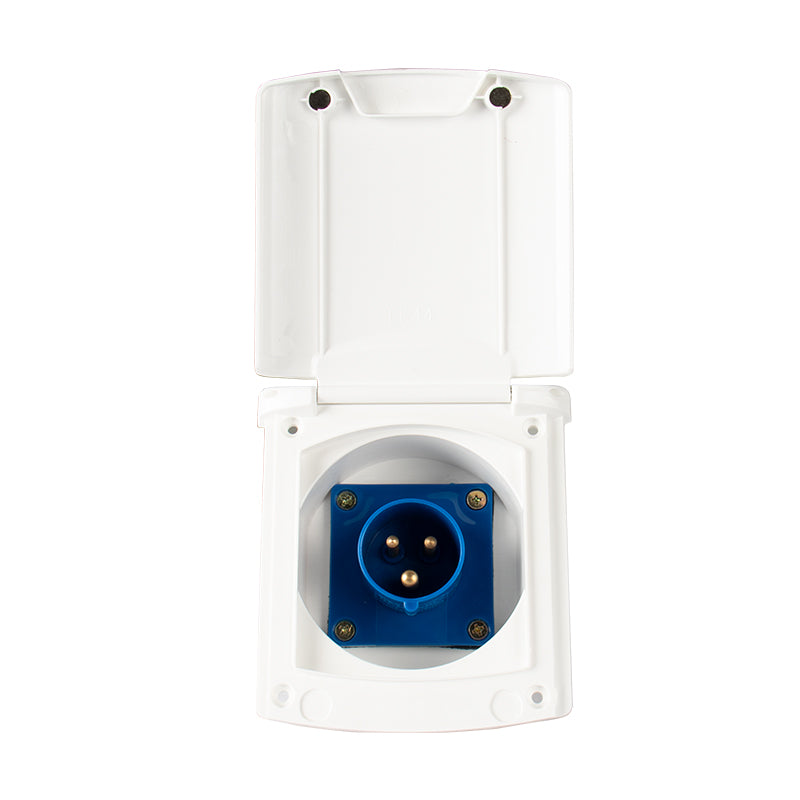

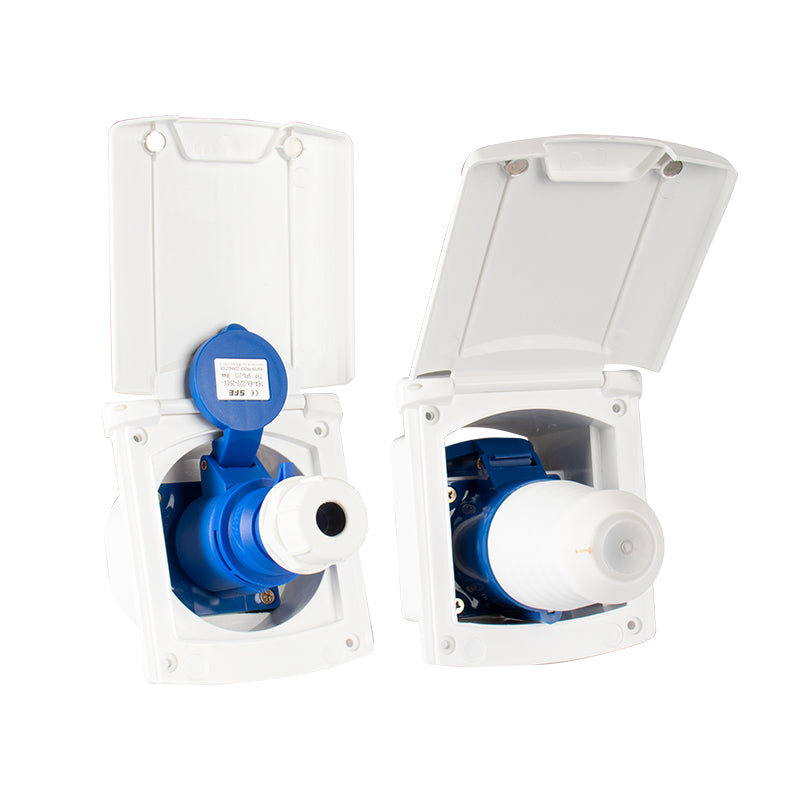

• IP44 weatherproof rating — dust and water splash resistant, reliable in rain and coastal environments
• Magnetic flip cover — snaps firmly shut with one touch, won't rattle or blow open during travel
• 180° wide-open cover — full access to the socket, plug in without obstruction or awkward angles
• Brass terminal 3-pin socket — superior conductivity, low resistance, runs cool under load
• Heavy ASA body (320g) — UV-resistant, impact-resistant, outlasts lightweight imitations
• 16A or 32A options — choose the amperage to match your shore power supply or generator output
• Self-tapping screw + sealant installation — secure, weathertight flush-mount fit

Product Details

• Magnetic cover — upper and lower magnetic bodies lock together, stable and rattle-free
• 180° flip angle — cover opens fully upward, no obstruction when plugging in
• IP44 waterproof body — ASA material, UV and weather resistant
• 3-pin industrial socket — brass terminals, GB standard, excellent conductivity
• Mounting — self-tapping screws + sealant for a weathertight installation

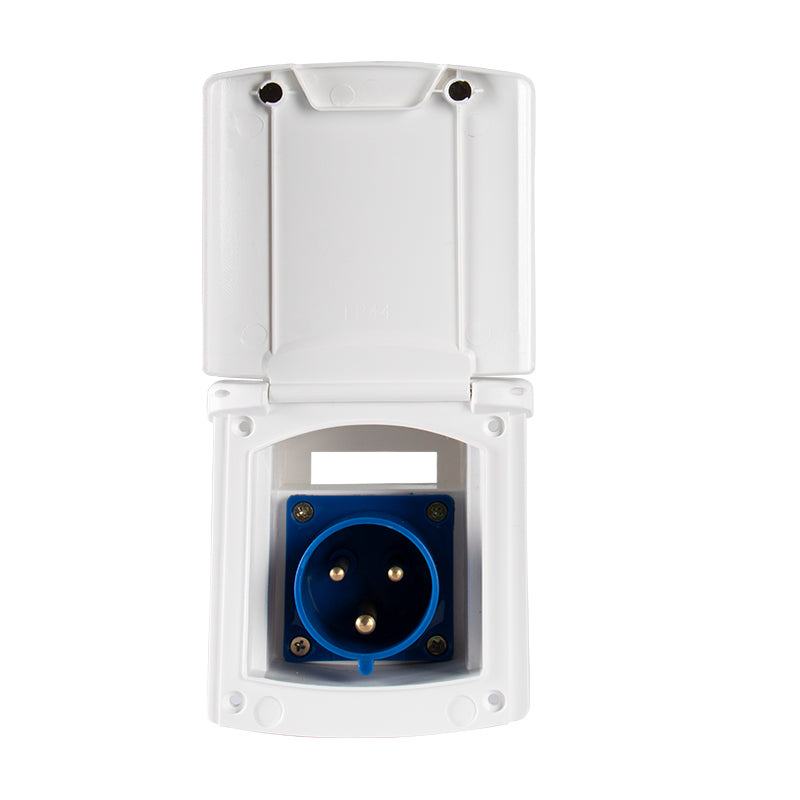

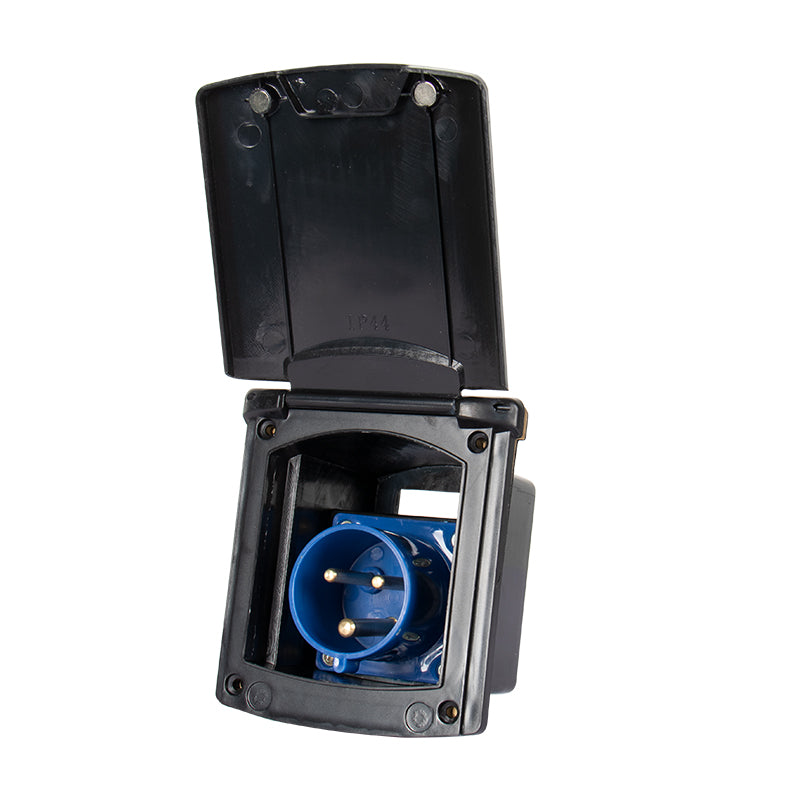

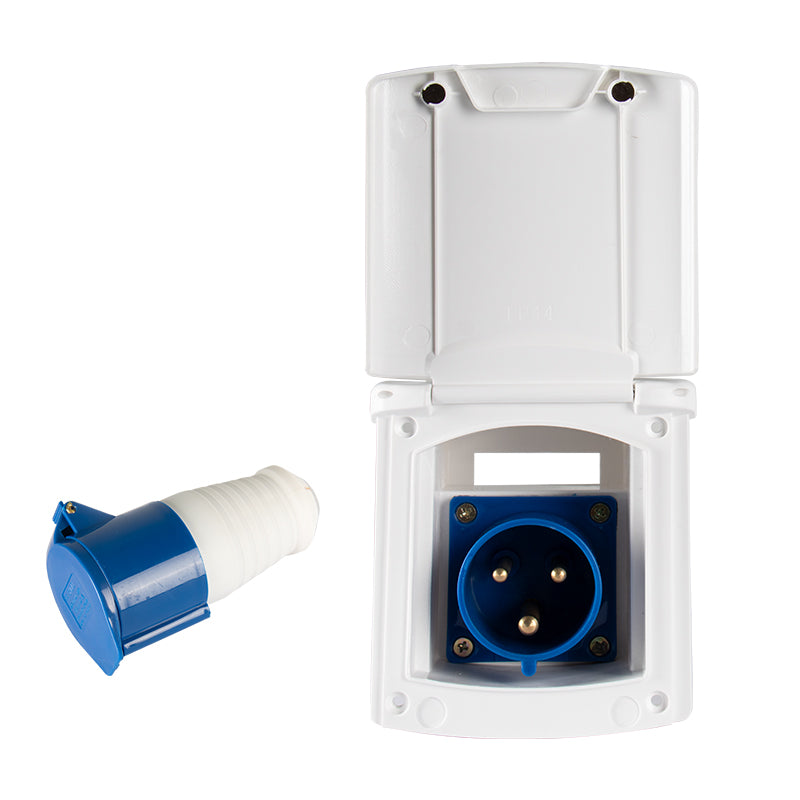

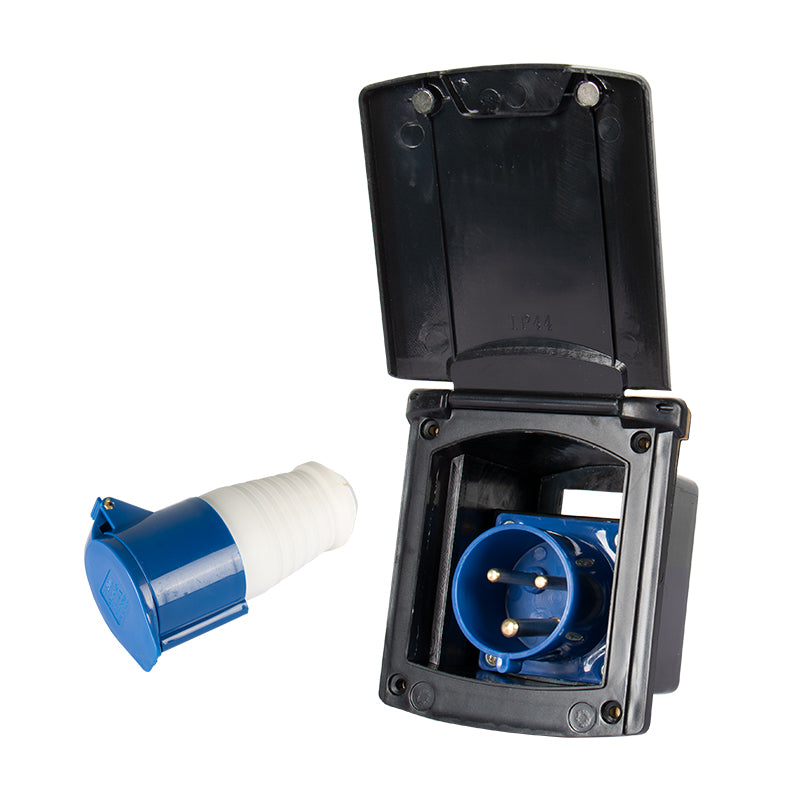

Technical Specifications — 32A Version

• Material: ASA
• Color: White / Black
• Waterproof Rating: IP44
• Overall Dimensions: 145 × 130 × 103mm
• Panel Cutout: 108 × 82mm
• Rated Current: 32A
• Installation: Self-tapping screws + sealant

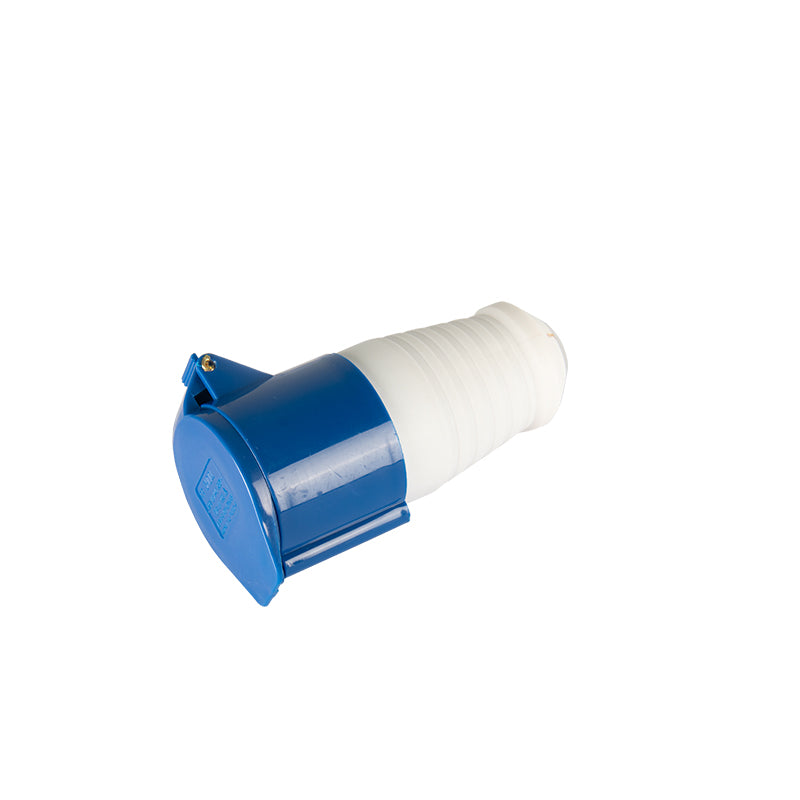

• Weight: 312g (panel) + 153.5g (plug)

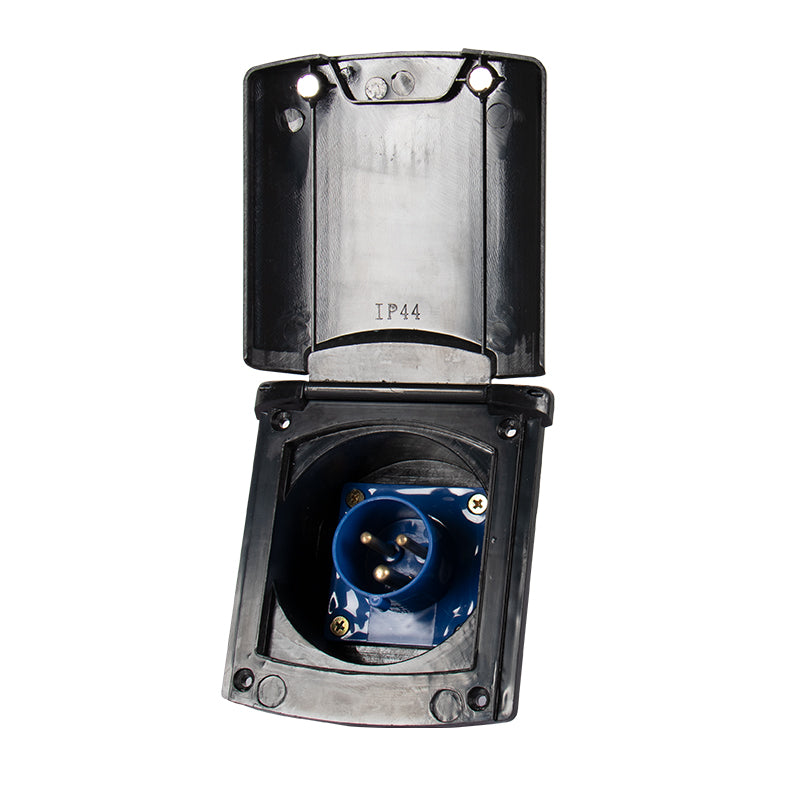

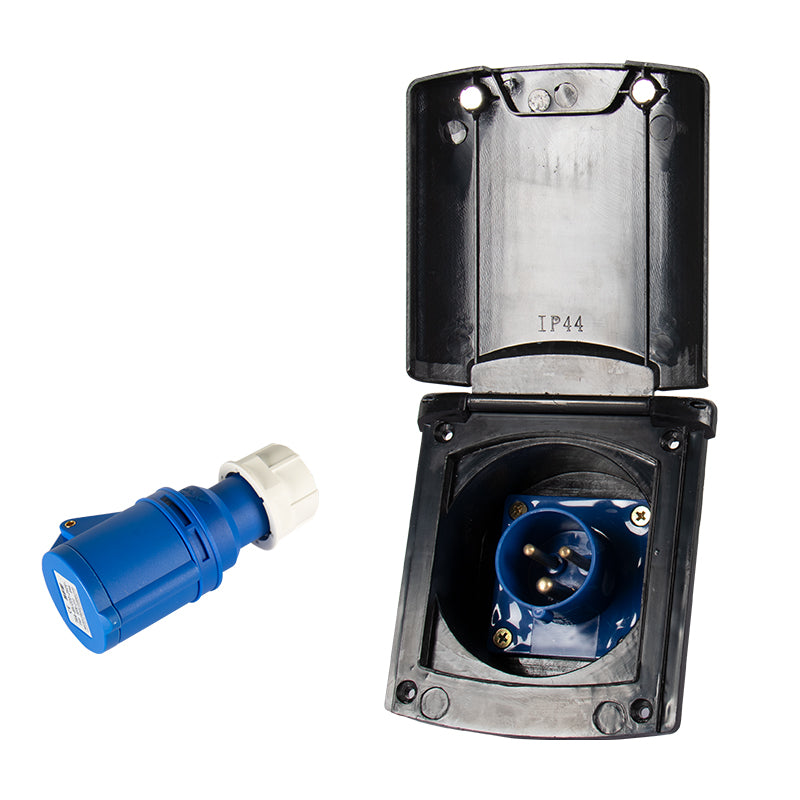

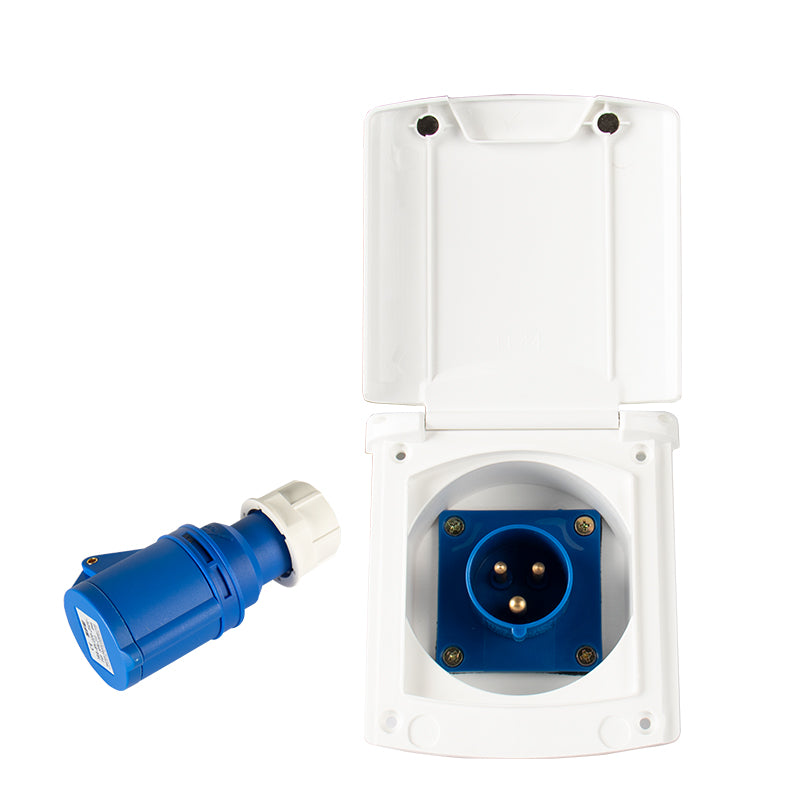

Technical Specifications — 16A Version

• Material: ASA
• Color: White / Black
• Waterproof Rating: IP44
• Overall Dimensions: 145 × 130 × 80mm
• Panel Cutout: 100 × 94mm
• Rated Current: 16A
• Installation: Self-tapping screws + sealant

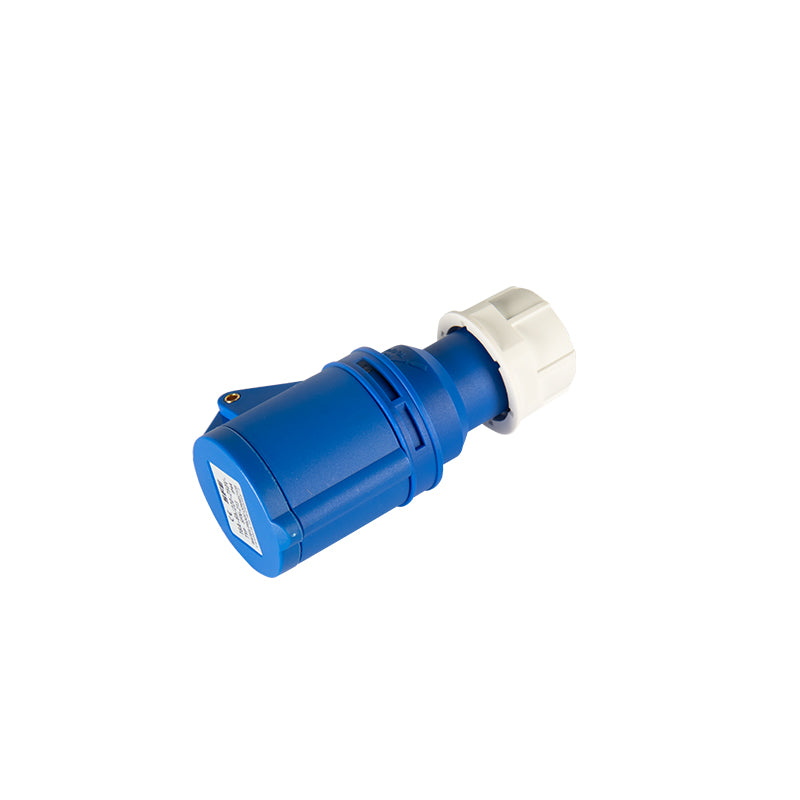

• Weight: 240g (panel) + 148g (plug)

Installation Notes

Cut the panel opening to the required size (108×82mm for 32A; 100×94mm for 16A). Apply sealant around the rear flange before mounting. Secure with self-tapping screws through the mounting holes. Connect your shore power supply cable to the socket terminals. Ensure all connections are made by a qualified electrician and comply with local electrical codes.

Compatible Applications

RVs, motorhomes, camper vans, caravans, marine boats, yachts, campsite hookup panels, generator connection points, and any outdoor installation requiring a weatherproof shore power inlet.
