• Cigarette lighter port (12V 120W) — power car fridges, air compressors, and 12V accessories directly
• Dual USB charging ports — charge phones, tablets, and GPS devices simultaneously
• Standard 3-pin 86-type socket (10A 250V) — compatible with most household and travel appliances
• IP44 weatherproof rating — protected against dust and water splashes for reliable outdoor use
• Magnetic flip cover — snaps shut firmly with one touch, no loose flap, no rattling
• Flush-mount 86-type panel — clean, professional installation on any RV wall or panel

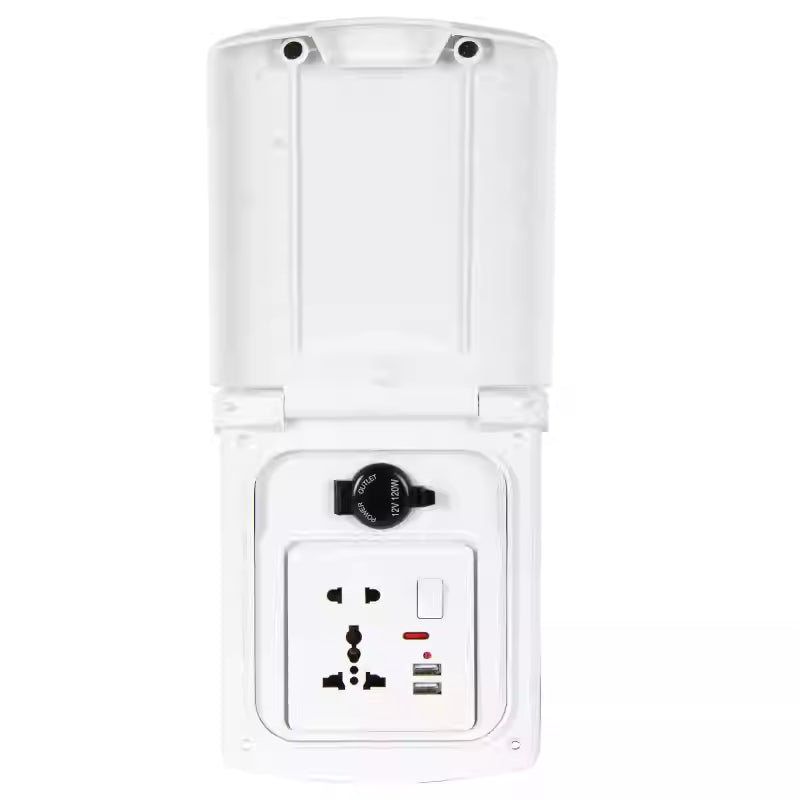

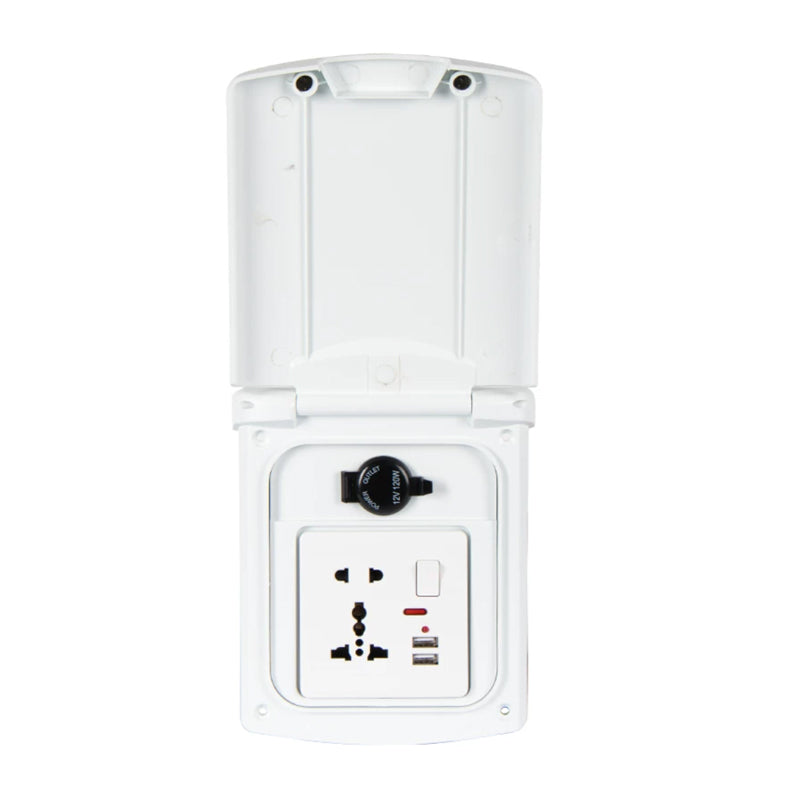

Product Structure

• Magnetic cover — strong magnetic latch, opens wide, stays firmly closed when shut
• IP44 waterproof body — durable housing, long service life in outdoor environments
• Mounting holes — standard panel installation with included hardware
• Cigarette lighter port — 12V DC, 120W max, for 12V accessories
• USB charging ports — 2x USB-A, built-in
• 3-pin 86-type socket — copper terminals, strong conductivity, 10A 250V AC

Technical Specifications

• Socket Type: 86-type 3-pin universal outlet
• AC Rated Voltage: 250V
• AC Rated Current: 10A
• Cigarette Lighter: 12V DC, 120W
• USB Ports: 2x USB-A
• Waterproof Rating: IP44
• Cover: Magnetic flip cover

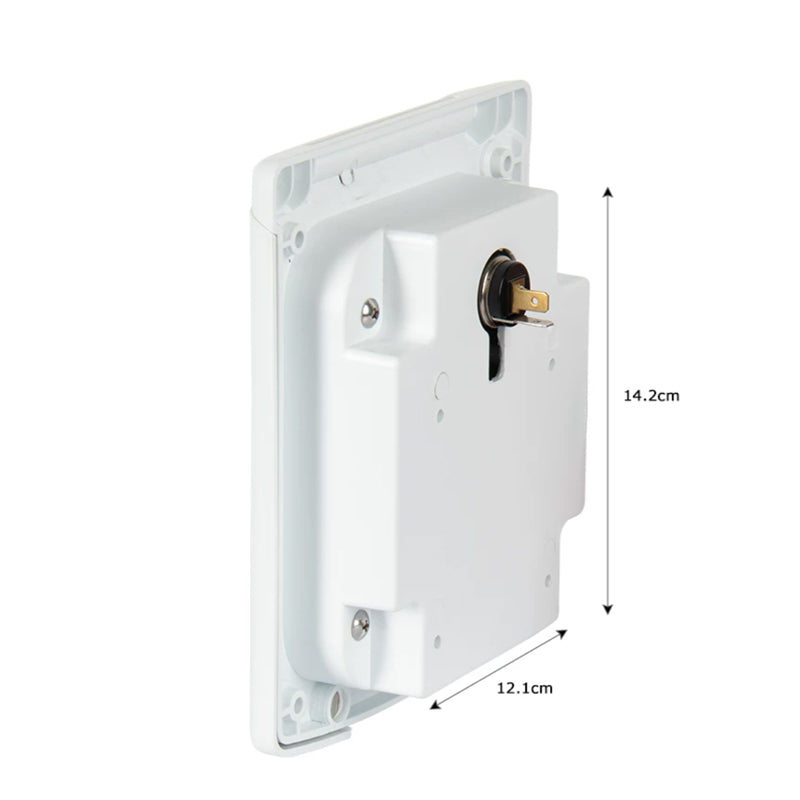

• Panel Cutout Size: 121mm x 142mm
• Overall Dimensions: approx. 145mm x 130mm (cover open)

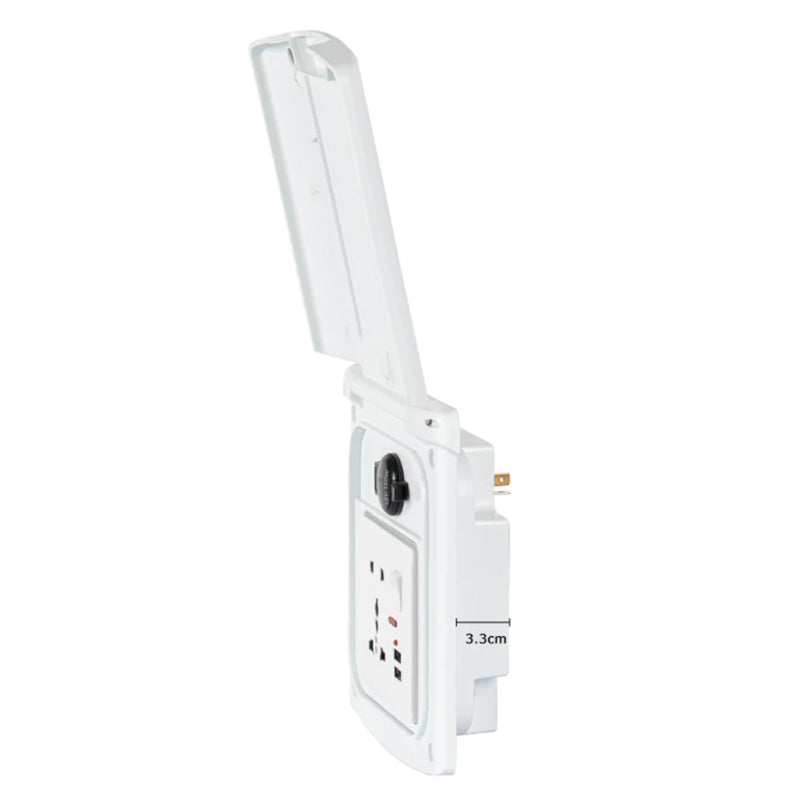

• Mounting Depth: approx. 69mm
• Color: White

Installation Notes

Cut a 121mm x 142mm opening in your panel. Ensure sufficient depth clearance behind the panel. Secure the unit with screws through the mounting holes. Connect AC wiring to the 86-type socket terminals and 12V DC wiring to the cigarette lighter port. Suitable for RV walls, boat panels, camper van interiors, and outdoor enclosures.

Compatible Applications

RVs, motorhomes, camper vans, caravans, marine boats, yachts, off-road vehicles, outdoor kitchens, and any installation requiring weatherproof multi-function power access.
