Folding Drink Cup Holder

Key Features

• Auto-Return Spring Arms – Spring-loaded arms automatically grip and release drinkware; no manual adjustment needed
• Gear-Adjust Option – Gear mechanism allows precise manual width adjustment and locks firmly at any position
• Fits Cups up to 83mm Base Diameter – Accommodates slim cans, standard bottles, travel mugs, and ceramic cups; minimum height 100mm
• Folds Completely Flat – Collapses to a slim profile when not in use; saves space on boats, RVs, and vehicles
• Dual Installation Methods – Self-tapping screws (included) for permanent mount; acrylic double-sided tape (included) for no-drill installation
• Compact Footprint – 95 × 92mm base plate fits in tight spaces on door panels, consoles, and cabin walls

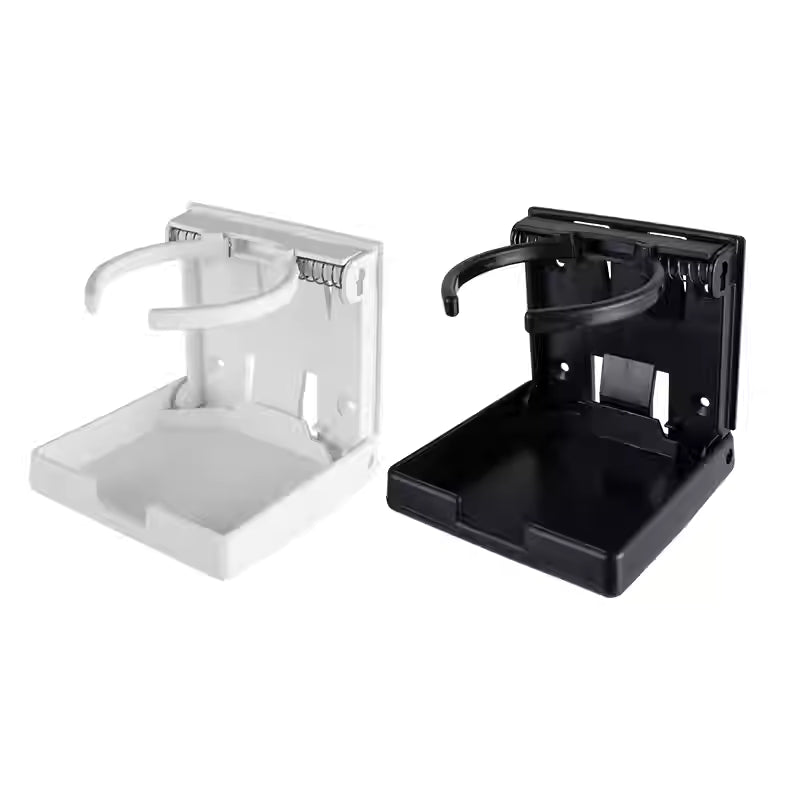

• Black or White – Two color options to match your interior
• Wide Application – Boats, RVs, caravans, cars, trucks, marine consoles, door panels

Important Sizing Note

• Measure your cup’s base diameter only — top and middle diameter measurements are not valid for fit
• Maximum base diameter: 83mm
• Minimum cup height: 100mm
• Cups with handles (mugs) are supported — the arm grips the base, handle extends freely

Spring vs. Gear — Which to Choose?

• Spring Adjust: Fully automatic — place your drink and the arms grip it instantly. Best for everyday use and quick access
• Gear Adjust: Manual width lock — set the width once for your preferred drinkware and it stays locked. Best for rough conditions where vibration could compress spring arms

Specifications

• Material: ABS plastic
• Color: Black / White
• Base Plate Size: 95 × 92mm
• Max Cup Base Diameter: 83mm
• Min Cup Height: 100mm
• Mechanism: Spring-adjust (auto-return) or Gear-adjust (manual lock)
• Mounting: Self-tapping screws (included) or acrylic double-sided tape (included)
• Application: Boats, RVs, cars, marine consoles, door panels, cabin walls

Installation

Method 1 – Self-Tapping Screws (Recommended for permanent install):

1. Position the holder on your chosen surface and mark the 4 pre-drilled screw holes
2. Drive the included self-tapping screws directly into the surface — no pre-drilling needed on most materials
3. Note: screws are small; keep them safe during installation

Method 2 – Acrylic Double-Sided Tape (No-drill, for new vehicles):

1. Apply the included acrylic tape to the back of the holder first (surface is not flat, tape must adhere to holder before mounting)
2. Clean the mounting surface — smooth, dust-free, and grease-free surfaces bond best
3. Press firmly and hold for 30 seconds; allow 24 hours cure time before loading
